Pioneers in Zincalume Tank Engineering to Erection

Winfra is a trusted Zincalume Tank Manufacturer in Haryana, India, delivering durable, modular Zincalume Water Storage Tanks and engineered Storage Solutions for Water, Grain, and Gas for industrial, commercial, agricultural, fire protection, and infrastructure projects. Manufactured using high-strength steel with a 55% aluminium, 43.5% zinc, and 1.5% silicon alloy coating, our tanks provide superior corrosion resistance, fast installation, low maintenance, and long-lasting performance in demanding environments.

Application
Features
Specification
Manufacturing Process
Model Chart
Gallery

Applications of Zincalume & water Storage Tank:

Winfra Buildtech delivers advanced biofuel solutions across multiple industries, ensuring efficient and sustainable operations with cutting-edge engineering systems.

Water Storage Systems

Firefighting Water Storage

Industrial Liquid Storage

Rainwater Harvesting Systems

Agricultural Irrigation Storage

Municipal Water Supply Projects

Construction Site Water Storage

Wastewater Storage (STP/ETP)

Cooling & Process Water Storage

Commercial & Institutional Use

Mining & Infrastructure Projects

Disaster & Emergency Water Storage

Key Features of ZA Zincalume Tanks

Superior Corrosion Resistance

  • Zinc-Aluminum alloy coated
  • 2–4x higher life than other steel
  • Anti-rust protection

High Strength & Durability

  • Coated high-strength steel
  • Resists external impacts
  • Designed for large tanks & silos

Longer Service Life

  • 20–30 years service life
  • Weather resistant performance

Excellent Heat Reflectivity

  • High heat reflection
  • Helps reduce internal heat
  • Reliable in hot climates

Low Maintenance Requirement

  • Reduced paint maintenance
  • Anti-cracking finish
  • Cost-effective over time

Lightweight & Easy Installation

  • Reduced tank weight
  • Easy modular install
  • Saves time and labor cost

Eco-Friendly & Sustainable

  • Fully recyclable material
  • Less waste with longer life
  • Enables sustainable development

Technical Specifications

Winfra Buildtech's Zincalume tanks deliver unmatched performance through precision engineering and premium materials.

TECHNICAL DATA SHEET FOR ZINCALUME STEEL TANK (WINFRA)
PROCESS & OPERATING PARAMETERS
SERVICES Drinking/ Raw water/ FIRE Water / RO/ UF/ STP /STP FREEBOARD ABOVE LIQUID 250mm + 150mm Dead Storage
GEOMETRY Cylindrical TANK COLOUR NATURAL SILVER
REBATE DEPTH NA FOUNDATION OUTSIDE COPING Client scope ( If Required )
FOUNDATION TYPE Ring Beam ROOF TYPE ZincAlum dome/Conical Roof
WALL EMBEDMENT As Per Design Specs O & M As Per Site Location

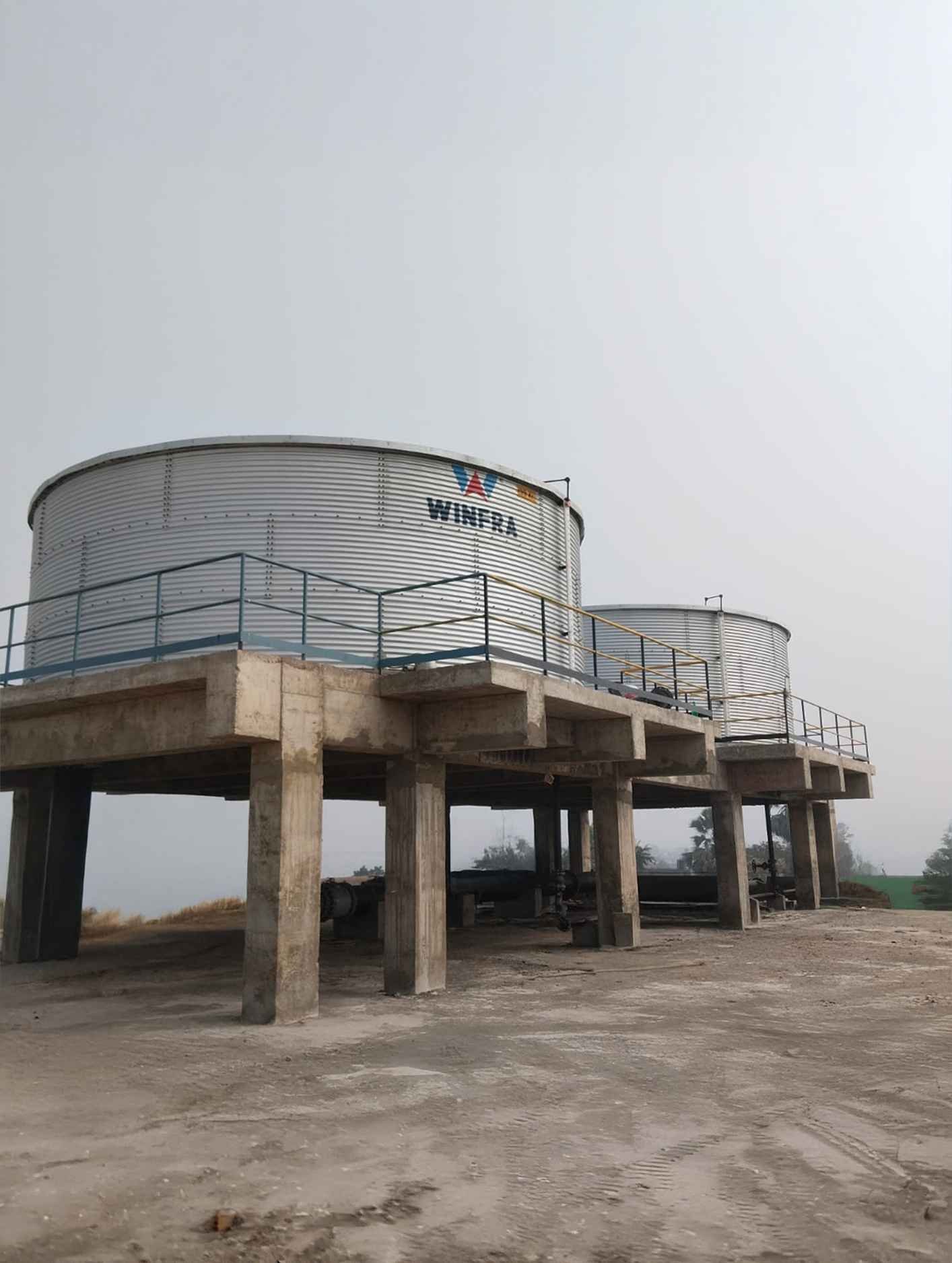

LOCATION On Ground / Semi-under Ground / Over Head
DESIGN DATA
DESIGN CODE AS 2304 CONTENTS SPECIFIC GRAVITY 1 , 1.1 , 1.2
WIND SPEED 55m/s COATING THICKNESS 150 gsm /200 GSM
SNOW LOAD NA WIND VELOCITY 55m/s , 45m/s
SEISMIC ZONE V Severe intensity as per IS-1893 COATING ZN , AL , SI
OPERATION TEMP. -5~65 Degree C. EDGE PROTECTION SILVER ZINC PAINT
PH RANGE 3~11 HAZARD CATEGORY Non Hazardous
SHELL THICKNESS (mm) 0.8 MM - 1.6 MM DESIGN PRESSURE Atmospheric
HOLIDAY TEST NA SEISMIC ZONE 5/4>
STRUCTURE DESIGN LIFE 25+ Years
SCOPE OF SUPPLY MATERIAL OF CONSTRUCTION
TANK WALL PANELS ZINC ALUME STEEL G 300 COMPLETE TANK ZINCALUME STEEL WITH INSIDE PVC LINER TANK
TANK ROOF PANELS ZINCALUME STEEL G 550 NUTS & BOLTS MS HDG 8.8 GRADE
WIND GIRDERS HDG MS NOZZLES & FLANGES MS HDG
TOP & BASE ANGLES HDG MS PANEL BOLTS MS HDG 8.8 GRADE
FASTENERS Hilti HST3 Anchor Bolt M20/300 HDG LINER PVC 760 / 890 GSM
STIFFENERS 4MM GI NA TANK FOUNDATION (BY OTHERS) Concrete M25 / M 30
INTERNAL VERTICAL LADDER ROPE LADDER WITH FRP STEPS ADDITIONAL ACCESSORIES
STAIRWAY HDG / GI WITH SAFETY CAGE SS 304 NUT and BOLTS FOR SEA SIDE AREA
MANHOLES & NOZZLES HDG BS TABLE 10 D / E EARTHING ARRANGMENT COPPER ELECTRODE
PLATFORM WITH HANDRAILS HDG SAFETY CAGE 1200X1200mm AVIATION LIGHTS SOLAR POWERED
SAFETY RAILING ON TOP CIRCUMFERENCE GI - 4MM With GI Wind Rings TESTING & INSPECTION
ROOF TRUSSES HDG SELF SUPPORTING ROOF CHEMICAL ANALYSIS CERTIFICATE Material Test Certificate
LEVEL INDICATOR Powder Coated Float And Board Mechanical Type MECHANICAL ANALYSIS CERTIFICATE Material Test Certificate
Wall + Roof ACCESS HATCH ZINCALUME (600X600) HYDROTEST At Site after Erection of tank
DOME SS AIR VENT SS202 / PVC - Whirly BRD VISUAL INSPECTION Pin hole test at Factory
CATHODIC PROTECTION By Magnesium Anode

Manufacturing Process

Step-by-step engineered manufacturing with quality control.

Model Chart

Different capacity models available for diverse needs.

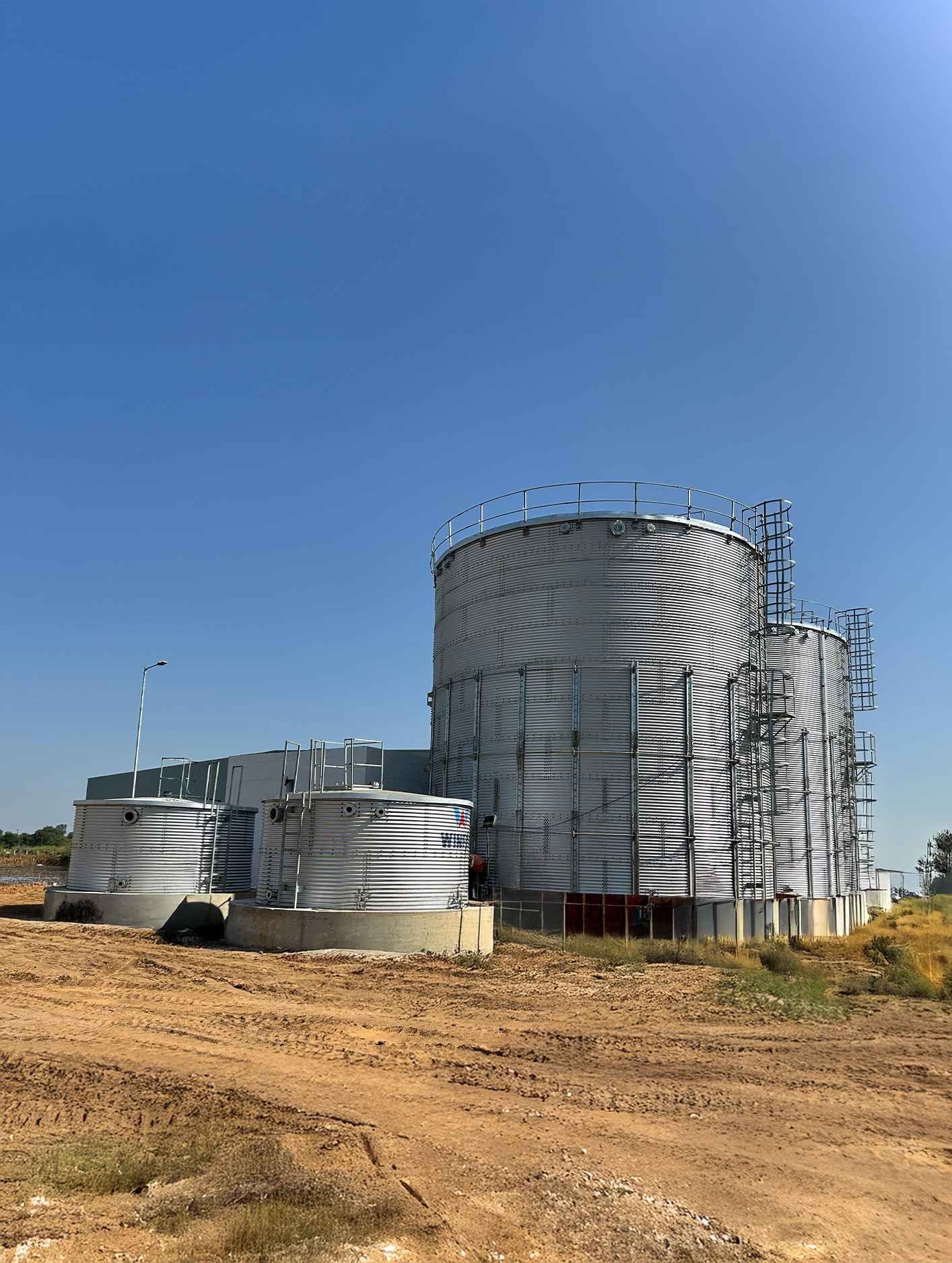

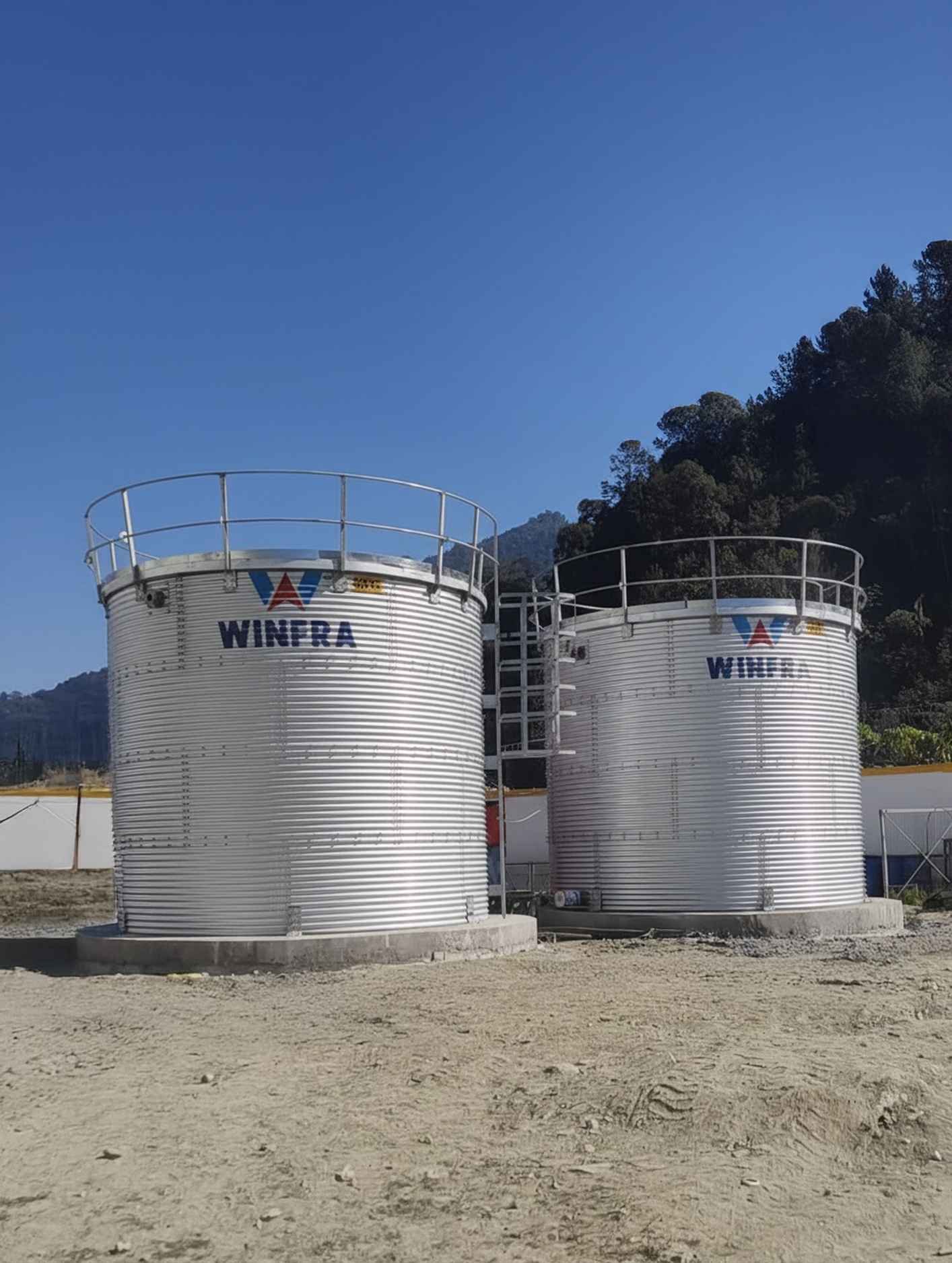

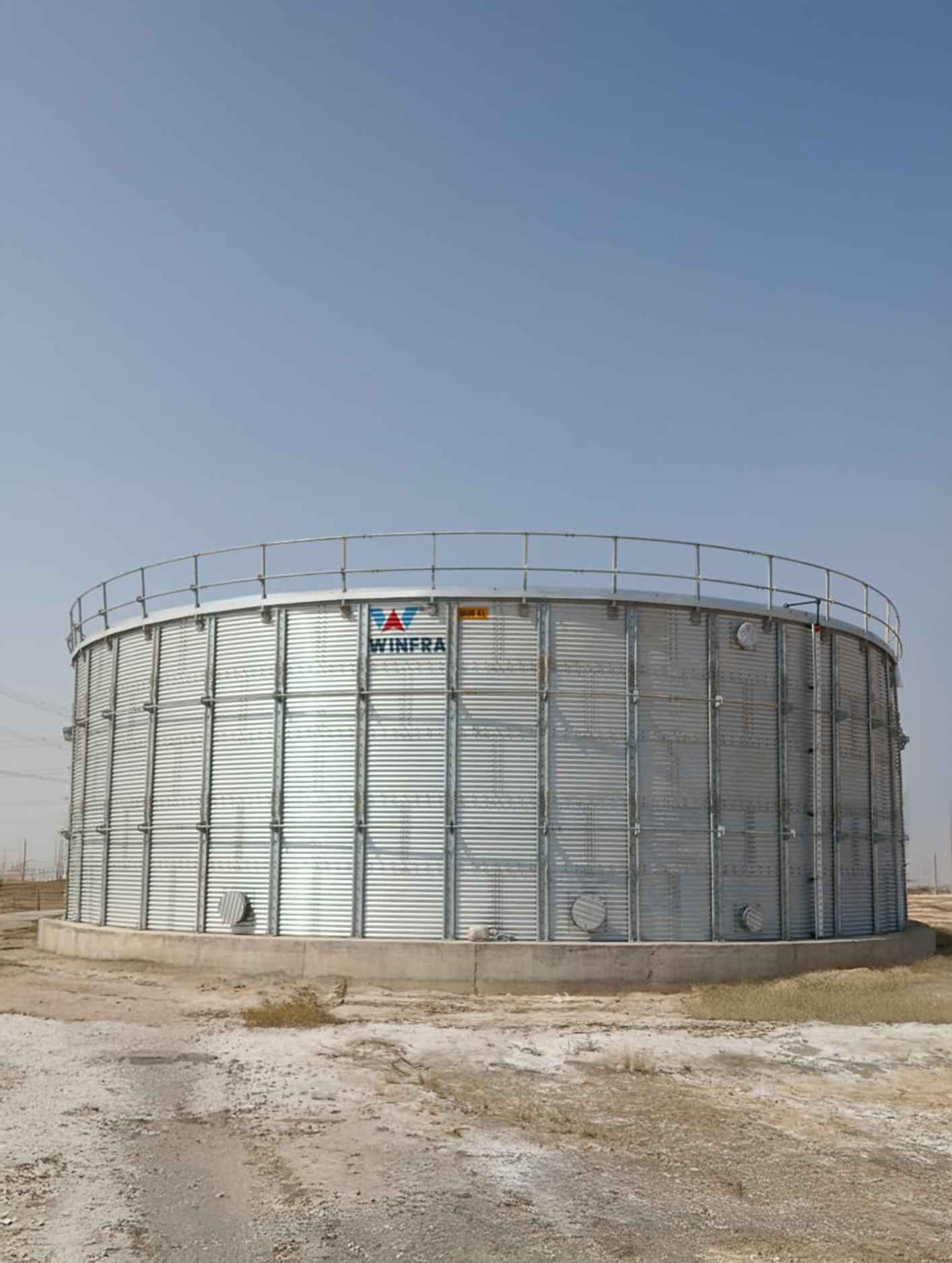

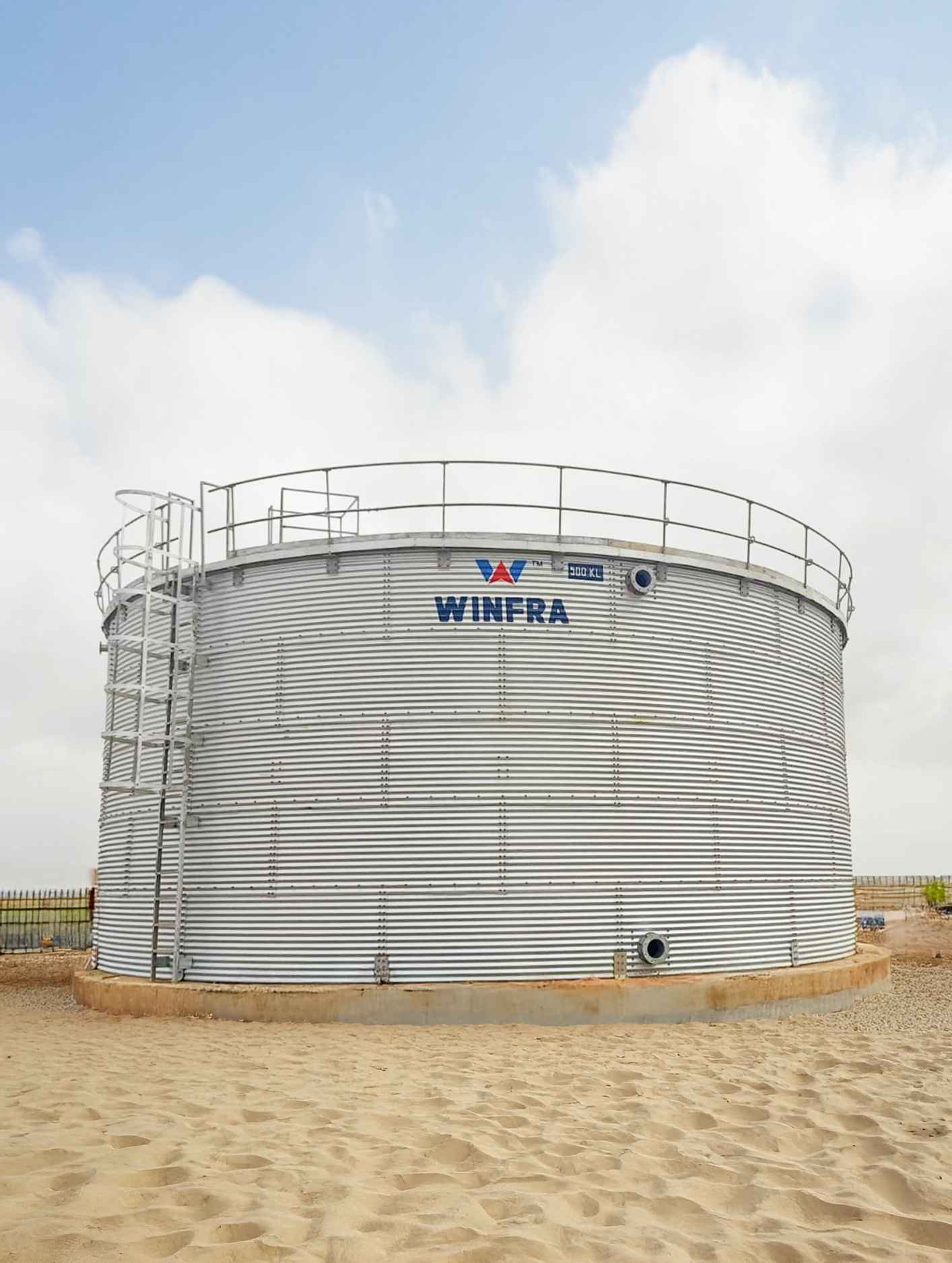

Gallery

Project images and real installation visuals.
